結構手板和功能手板的交互原理
來源：http://m.seaoil.cn作者：山東嘉瑞杰機械科技有限公司發布時間：2019-07-25
結構手板;主要檢測產品的結構合理性，對于尺寸要求較高，對外觀要求相對較低，國外對這類要求尤為嚴格。外觀手板;主要檢測產品的外觀設計，要求外觀精美，顏色準確。
The structure of the hand plate; the structure of the products is reasonable, the requirements of the size are higher, the requirements of the appearance are relatively low, and the requirements of this kind are particularly strict in foreign countries. The appearance of the hand board; the main inspection of the appearance of the product design, the appearance of beautiful appearance, accurate color.
對內部的處理要求不高，有些的內部直接做成實心體。功能手板;要求實現跟真正的產品一樣完全相同的外觀、結構及功能，可以理解為未上市的成品，是要求*高，難度*大的一類手板。
The internal processing requirements are not high, and some interior is made directly into solid body. The functional hand plate, which requires the same appearance, structure and function as the real product, can be understood as the unfinished product, which is the most demanding and most difficult type of hand plate.
手板模型，其實就是一個已經完成并且用來檢查所需要設計產品的模型，并通過此手板模型來看看所生產的模型是否合理，找出其中的不足，根據手板模型找出設計圖紙的合理性。
The hand panel model is actually a model that has been completed and used to check the products that need to be designed. Through this hand plate model, we can see if the model is reasonable, find out the shortcomings, and find out the rationality of the design drawings according to the hand plate model.
但在設計時有一個問題要注意，那就是剛開始的設計模型不能設計的在好，否找找不出缺陷，如果不經過仔細檢查，一旦成批量的生產，將會造成很大的資源浪費，其中包括有人力物力還有時間，這對企業來說是*忌諱的。
But there is a problem in the design should pay attention to, that is the beginning of the design of model design cannot be in good, not for a defect, if not carefully checked, once the production batch, it will cause a great waste of resources, including manpower and time, this is the most taboo on enterprise.
在做手板模型的時候，我們經常會聽到工藝這個詞，那么手板模型有哪些工藝么?由于手板模型有多種制作方式，包括CNC加工、3d打印、真空復模、低壓灌注等等，并且每種方式的工藝各不相同，下面就以*常見的CNC加工為例，為大家介紹一下它的工藝。
When doing the model, we often hear the word process, then model what process? Because Shouban model has produced a variety of ways, including CNC processing, 3D printing, vacuum casting, low-pressure perfusion and so on, and the process of each mode is different, the most common processing in CNC for example, to introduce its technology.

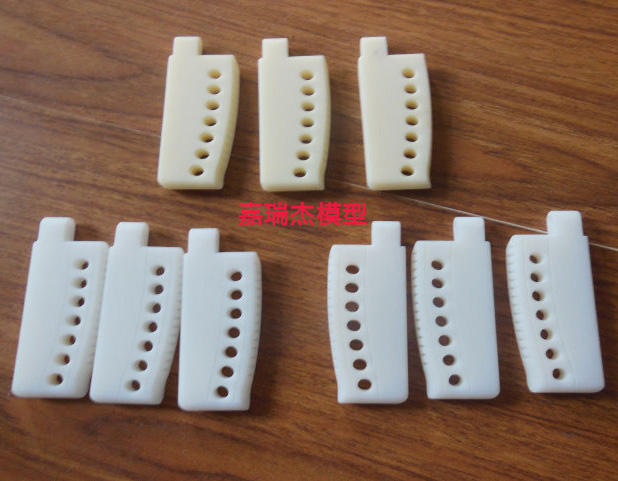

經過CNC加工出來的手板，并不是非常平整的，多少會有點毛邊，需要用砂紙將其磨平，使手板模型的表面更加光滑，更好的進行下一工序。
The hand plate processed by CNC is not very smooth, and there will be a bit of edge. It needs to be smoothed with sandpaper, making the surface of the hand plate model smoother and better for the next process.
本文由濟南手板友情奉獻.更多有關的知識請點擊:http://m.seaoil.cn 我們將用*的技術.*真誠的態度.為您提供*為的服務.更多有關的知識我們將會陸續向大家奉獻.敬請期待.
This article is from Qingdao hand plate friendship dedication. Please click on more related knowledge: http://m.seaoil.cn, we will use the most advanced technology and the most sincere attitude to provide you with the most comprehensive service. We will dedicate more related knowledge to you. Please look forward to it
